Bulky Goods
Dangerous Goods
Forwarding Agency- SKU:
- 99-151
- UPC:
- 4050444210462
- Brand:
- CLIPLIFT
- Restposten:
- no
- Dangerous Goods:
- no
- Auslauf:
- no
- Beschreibung:
- Cliplift Magnum 500
- Bulky Goods:
- no
- Forwarding Agency:
- yes
- Weight in kg:
- 38.00
- Lifting height in mm:
- 1000
- Beschreibung 2:
- Hebevorrichtung bis 500kg
- Max. total weight lawn tractor:
- 500
- Size in mm L x W x H:
- 1650 x 450 x 210

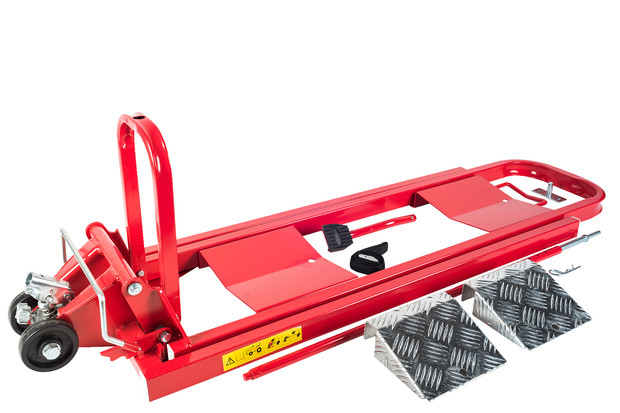

CLIPLIFT Magnum hydraulic mower lift up to 500 kg – for safely lifting ride-on and zero-turn mowers during cleaning and maintenance
The patented CLIPLIFT Magnum provides easy access to the cutting deck of ride-on and zero-turn mowers weighing up to 500 kg. The hydraulic lifting system tilts the machine sideways in a controlled manner, providing convenient access for cleaning the cutting deck and inspecting or replacing the blades.

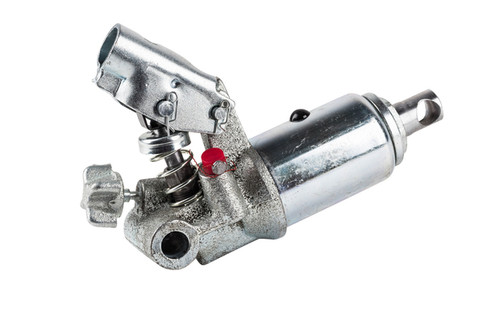

The hydraulic ram provides smooth lifting with minimal effort. Loading ramps make it easier to position the wheels in the cradle. Suitable for machines with a maximum outer wheel track of 127 cm. The maximum lifting height is 90 cm with a tilt angle of 45°.
Safety and handling
- 3-stage automatic safety locking system
- Additional support stand
- Adjustable safety strap
- Carrying handle and large-diameter castors

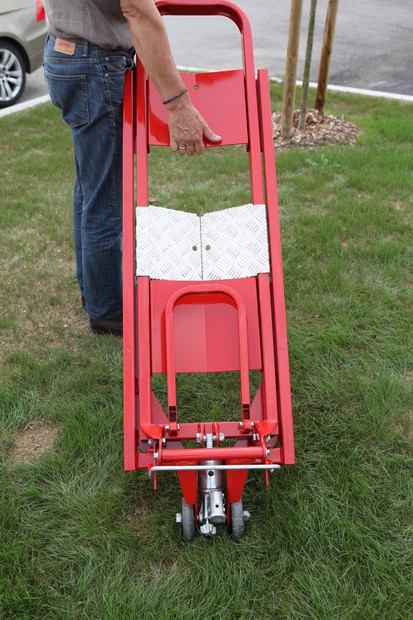

- Wall-mount bracket for space-saving vertical storage
Technical data
- Max. lifting capacity: 500 kg
- Max. outer wheel track: 127 cm
- Lifting height: 90 cm
- Tilt angle: 45°
- Tilting direction: sideways
- Operation: hydraulic
- Designed in France
- Manufactured in China
- Warranty: 2 years
Safety notice: Use only on stable, flat and solid ground. Check the machine weight and outer wheel track before use. Before carrying out maintenance, stop the engine completely, remove the ignition key and make sure all cutting parts have come to a complete stop.
