Forwarding Agency- SKU:
- 89-4103
- UPC:
- 4023055533169
- Wrench width in mm:
- 30.00
- Brand:
- GEKA
- Restposten:
- no
- Length of lever:
- 99
- Dangerous Goods:
- no
- NW in mm:
- 20
- Operating pressure in bar:
- 25,0
- Auslauf:
- no
- Beschreibung:
- Kugelhahn 3/4'' rot
- Length in mm:
- 52.0
- Size in inch:
- 3/4 I
- Thread size:
- G3/4" F , G3/4" F
- Material:
- Brass, nickel-plated
- Bulky Goods:
- no
- Forwarding Agency:
- no

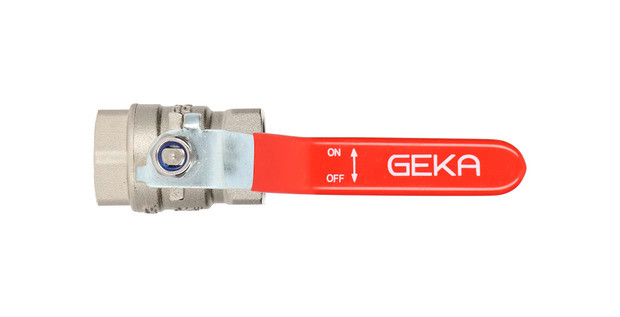

GEKA® ball valve type 7 female thread 3/4"
Full-passage ball valve made of nickel-plated brass with female threads on both sides.
Technical data
- Housing: brass, nickel-plated
- Ball: brass, hard chrome-plated with PTFE seal rings
- Spindle: brass with two NBR O-rings
- Lever: galvanised steel with red handle cover
- Female thread: 3/4" x 3/4"
- Female thread diameter: 24.66 mm
- Hexagon AF: 30 mm
- Nominal width: 20 mm
- Operating pressure: max. 25 bar
- Dimension A: 52 mm
- Dimension D: 105 mm
- Operating temperature: water 0 °C to +100 °C; air -20 °C to +100 °C
GEKA® manufacturer no.: 67.7703
