Forwarding Agency- SKU:
- 122-286
- UPC:
- 4050444192775
- Brand:
- RATIOPARTS
- Restposten:
- no
- Dangerous Goods:
- no
- Auslauf:
- no
- Beschreibung:
- Messerspindel für MTD 618-04657A
- Bulky Goods:
- no
- Forwarding Agency:
- no
- Mounting Flange to Upper Edge in mm:
- 101.0
- Mounting Flange to Blade Flange in mm:
- 35.5
- Length Shaft in mm:
- 164.0
- Pulley Upper Ø in mm:
- 160
- Belt Groove Width Upper in mm:
- 19.0
- Direction of rotation:
- clockwise
- Blade mounting:
- 6 point star
- QTY holes/Bolts:
- 4
- Beschreibung 2:
- 41" (105cm) Fahrtrichtung rechts
- Bolt Hole Ø in mm:
- 127.0

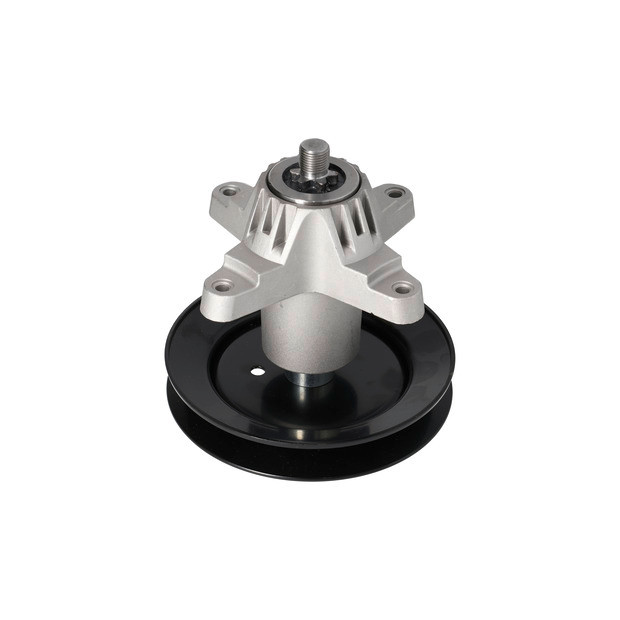

Blade spindle complete - installation in direction of travel right suitable for mower deck N 105 cm - 41" replaces MTD 618-04657A
Compatibility
This item is compatible, for example, with the following manufacturers and model series:
- GUTBROD lawn tractor: GB 22/105, GLX 105 RA, GLX 105 RALK, GLX 105 RAT, GLX 105 RH, GLX 105 RHL-K, GLX 105 RHL-SK, JLX 105 R, JLX 105 RH
- MTD lawn tractor: 24/105 H, 25/105 H, 175/105 H, 200/105 H, 220/105 H, Gold 175/105, JE 135 H, JN 150 H, JN 160 H, JN 175 H, LN 155, LN 175 H, LN 185, LN 200 H, P 180 AMN, P 180 TN, P 200 HN, Platinum RD 23/105 H, Prot 220 RD
- WOLF-GARTEN lawn tractor: Ambition 105.175 H, Blue Power 105.200 H, Expert 105.180 H, Expert 105.220 H, Select 105.155 T
To identify the correct part, please check the model designation and serial number.
Safety
For safe installation and proper operation, please observe:
- the manufacturer’s original installation instructions
- the safety and maintenance instructions for the respective machine/model
- replacement and maintenance work must only be carried out by trained personnel
Note
Before purchasing, compare the required spare part number with your machine/model identification plate to avoid incorrect orders.
If you have questions about compatibility or safe use, we will be happy to advise you.
