Forwarding Agency- SKU:
- XTEOM2DUOX4
- UPC:
- 5425006144773
- Warranty in years:
- 3
- Min. start voltage in V:
- 4
- Protection rating:
- IP54
- Battery type:
- Lead-acid, Lithium
- Desulfation:
- no
- Min. operating temperature in °C:
- -40
- Battery technology:
- Flooded, AGM, GEL, LiFePO₄
- Battery test after charging:
- no
- Battery nominal voltage in V:
- 13, 12
- Maintenance charging:
- yes
- Min. battery capacity in Ah:
- 2
- Cell balancing:
- no
- Brand:
- OPTIMATE
- Max. battery capacity in Ah:
- 48
- Number of charging steps:
- 5
- Max. charging current in A:
- 2
- Suitable for outdoor use:
- yes
- Number of charging outputs:
- 4
- Power source:
- ENERGY_AC
- Input:
- INPUT_AC100_240V
- Restposten:
- no
- Automatic battery type/voltage detection:
- yes
- Charging connector:
- Battery clamps, SAE connector, Ring terminals
- Recovery function:
- no
- Dangerous Goods:
- no
- Auslauf:
- no
- Beschreibung:
- OptiMATE 2 DUO x 4 BANK
- Bulky Goods:
- no
- Forwarding Agency:
- no

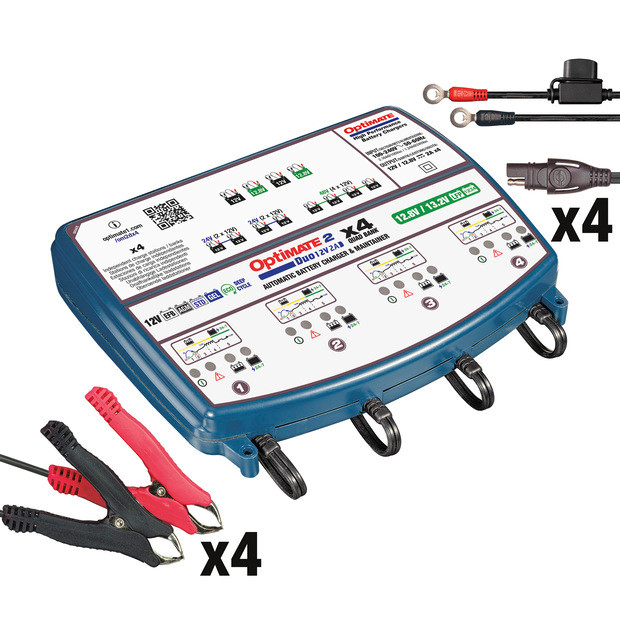

OptiMate 2 DUO x 4 BANK - 5-stage battery charger and maintainer with 4 independent charging outputs for 12 V / 12.8 V batteries
- Suitable for 4 AGM, GEL and STD 12 V batteries with a capacity of 6 to 48 Ah as well as 4 lithium (LiFePO4) 12.8 / 13.2 V batteries with a capacity of 2 to 24 Ah
- Charging current: 2.0 A per charging output (constant current)
- Charging voltage: nominal 12 V & 12.8 V / range: 4 V - 14.4 V
- Fully automatic operation
5 charging stages:
- Battery detection – Automatically detects lead-acid (Pb) and lithium (LiFePO4) batteries on each charging output.
- Charging – Optimized charging process according to the battery type.
- Optimization – Efficient charging for maximum battery performance.
- Maintenance – Safe 24/7 long-term maintenance for all connected batteries.
- Protection – Overcharge protection with automatic shut-off in case of a short circuit or disconnected battery.
Application: Suitable for indoor and outdoor use (minimum ambient temperature: -40 °C).
Input: 100-240 V / 50-60 Hz, high efficiency (CEC listed).
Design: Weather-resistant housing with wall mount, including 180 cm mains cable and 4 x 180 cm charging cables with SAE connectors.
Safety features: Overcharge protection, safe for vehicle electronics, spark suppression and automatic shut-off in case of short circuit or disconnected battery.
Included: 4 weatherproof battery leads and 4 battery clip sets.
Warranty: 3-year limited replacement warranty.
