Universal angle gearbox brushcutter

Universal angle gearbox for brushcutters and trimmers.

The robust universal angle gearbox is suitable for many counter-clockwise rotating brushcutters and trimmers with a straight drive shaft. It is designed for machines up to 45 cm³, a maximum engine output of 1.1 kW and a maximum engine speed of 10.000 1/min .

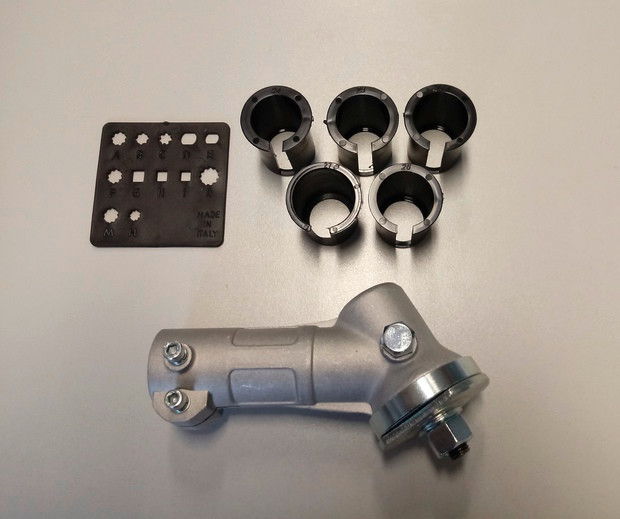

Thanks to the supplied adapter sleeves, the angle gearbox fits shaft tubes with a diameter of 24.0 to 28.0 mm. The integrated blade mounting with 25.4 mm allows the use of numerous brushcutter blades.

Product benefits

• Universally suitable for many brushcutters and trimmers
• For counter-clockwise rotating drive shafts
• Suitable for engines up to 45 cm³ or 1.1 kW
• Output thread M10 x 1.25 LGA
• Blade mounting Ø 25.4 mm
• Adapter sleeves for Ø 24.0, 25.0, 25.4, 26.0 und 27.0 mm included
• Drive-shaft template included in the scope of delivery

Note

An additional suitable shaft adapter is required for installation. It is not included in the scope of delivery.

Suitable shaft adapters (template included)

• Type A – 9 teeth (# 6-636)
• Type B – 8 teeth (# 6-635)
• Type C – 7 teeth (# 6-634)
• Type D – oval 6.5 / 8.1 mm (# 6-6421)
• Type E – oval 5.5 / 7.1 mm (# 6-642)
• Type F – 10 teeth (# 6-637)
• Type G – square 6.0 mm (# 6-640)
• Type H – square 5.4 mm (# 6-638)
• Type I – square 5.1 / 5.2 mm (# 6-639)

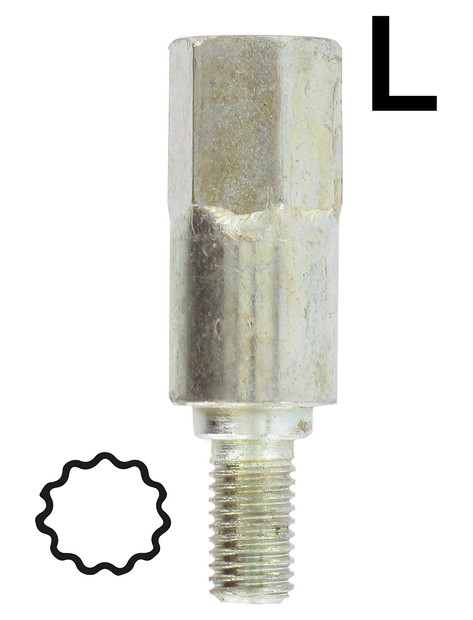

• Type L – 11 teeth (# 1602052)
• Type M – 10 teeth Ø 8.0 mm (# 1602072)
• Type N – 10 teeth Ø 6.0 mm (# 1602073)

Safety

For safe installation and proper operation, please always observe:

• the manufacturer's original installation inst
